Specification

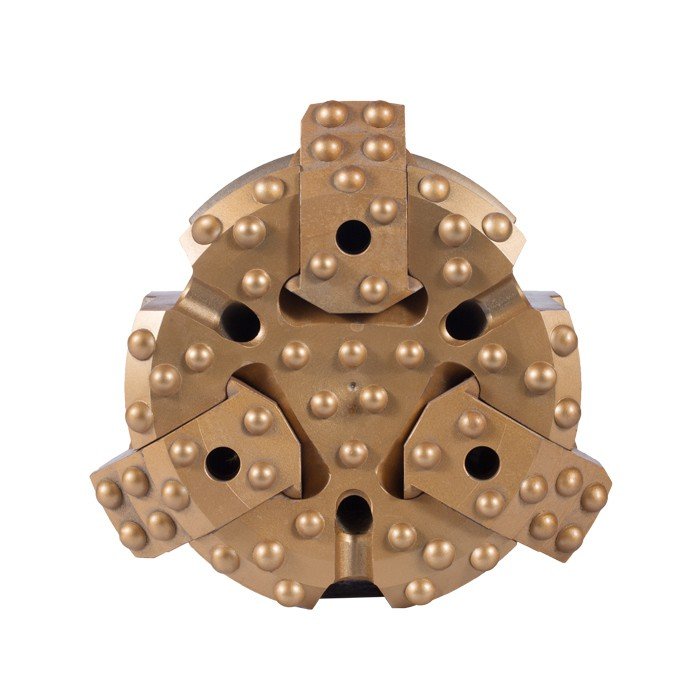

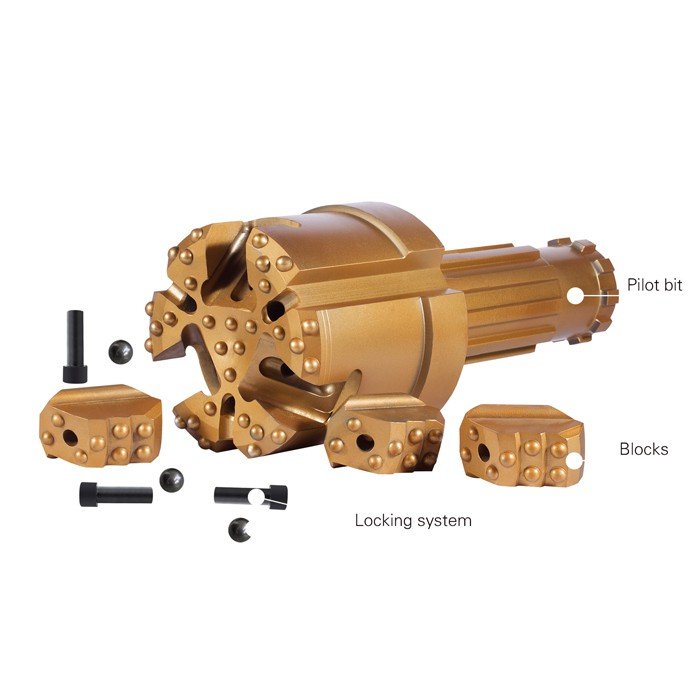

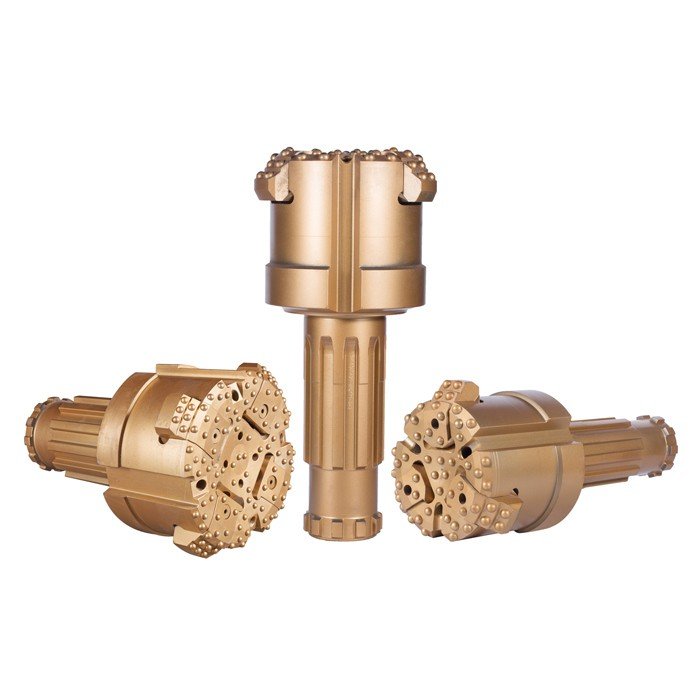

　　Slide Block Casing Drilling System with Reamer Wings for Grouting Hole Drilling
　　Features
　　Hardening treatment of the part’s surface with longer operating life and excellent anti-wear properties.
　　Structural Optimization, improving the structural strength and ease of operation
　　Superior Performance, high drilling speed with stable and reliable performance
　　Application Range
　　It is suitable for drilling water wells, geothermal wells, short micro piles,medium mini-type grouting hole of building, demand harbor project.
　　Operation Procedure
　　1.when the drilling starts, the wings swing out, and reams to drive the casing shoes and tubes into the hole.
　　2.When finished the drilling in overburden rock formations, reverse the drilling tools and the wings will get closed, and the drilling tools can be raised from the hole.
　　3.Next construction can be followed.
　　Quality warranty
　　Our products are made of high quality steel and all spares parts are inspected strictly before shipping.

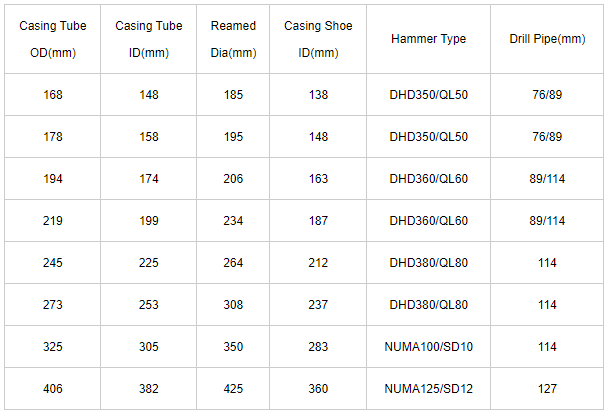

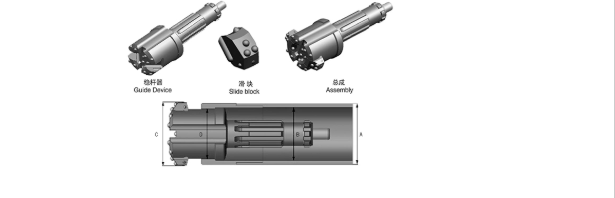

　　Product specifications: Slide block casing system
